The Hexa-Net
Every night thousands of couriers cross Manhattan with one bag each. The Hexa-Net lays a hexagonal grid over the island and lets a small fleet of drones do the same work, from shared kitchens at the center of each cell.
- PlaceManhattan, New York
- Year2021
- TypeService and interface design (UX/UI), urban system
- StatusStudy

The grid
Each hexagon is a district. At its center sits a hub: kitchen, drone port and a shared dining room. Orders inside a cell are flown from its own hub; orders across cells are handed from hub to hub, so no drone flies further than one cell.
- Hub: kitchen, drone port, shared dining
- Drone, one cell per flight
- District cell
The real Manhattan grid underneath. Hover a cell; the white points are drones handing orders from hub to hub.
How an order travels
From the tap on the phone to the knock on the door, every order makes the same four moves. The animation runs the loop.

Order
The customer orders in the app; the nearest hub receives it.

Hub
The kitchen cooks, and the hub batches orders by destination cell.

Hand-off
Orders for other cells fly one hop to the next hub, never further.

Delivery
The last hub sends a drone to the door; the app counts down the minutes.
The problem, and two answers
Food delivery in New York is one order, one courier, one trip through traffic. The Hexa-Net answers with two things a street cannot do.
Speed: a drone flies the straight line between two hubs while a courier follows the street grid. Modularity: the network is made of identical cells, so it grows one hexagon at a time without being redesigned.
Diagram, illustrative timings.
Urban research
Mapping demand across Manhattan showed that orders are not spread evenly: they cluster. The diagram replays the method: plot every order, find the clusters, place a hub at the heart of each, and check that every cell is within one flight.
Demand points are simulated to show the method.
- Plot every order
- Find the clusters
- Place a hub in each
- Every cell within one flight
The system
While the order is read, grouped and routed in software, the meal leaves the restaurant for the nearest hub. Everything bound for the same area within half an hour leaves together on one drone, to the door.
The interface
Two screens, one system. The customer sees one number and one line: where the meal is and how many minutes are left. The operator sees the whole grid live: drones in the air, orders per hub, batteries, and the next hand-off.
- Cooking at Hub 07
- In the air · 450 ft
- Passing Hub 12
- Arriving
The drone map
Two restaurants, two addresses, one flight. Each order flies in to hub M11; once both are there, a single drone takes them out together, drops the first on E 15th St and the second two blocks away on Irving Place. Behind it, the rest of the network keeps flying.
Zone M740.725, -74.001Current location
0 mphCurrent speed
ClearVisibility
New orderPera Cafe → 328 E 15th Stnow
New orderVeselka → 40 Irving Plnow
- 01Two orders
- 02Two pickups
- 03Batched at M11
- 04Drop 1 · E 15th
- 05Drop 2 · Irving Pl
Flight #4827
- 0
- orders on board
- 2
- drops to go
- 14
- drones in the air
Battery
80%Remaining distance: 20 milesFlight altitude
0 ftHeight limit: 600 ftThe hub

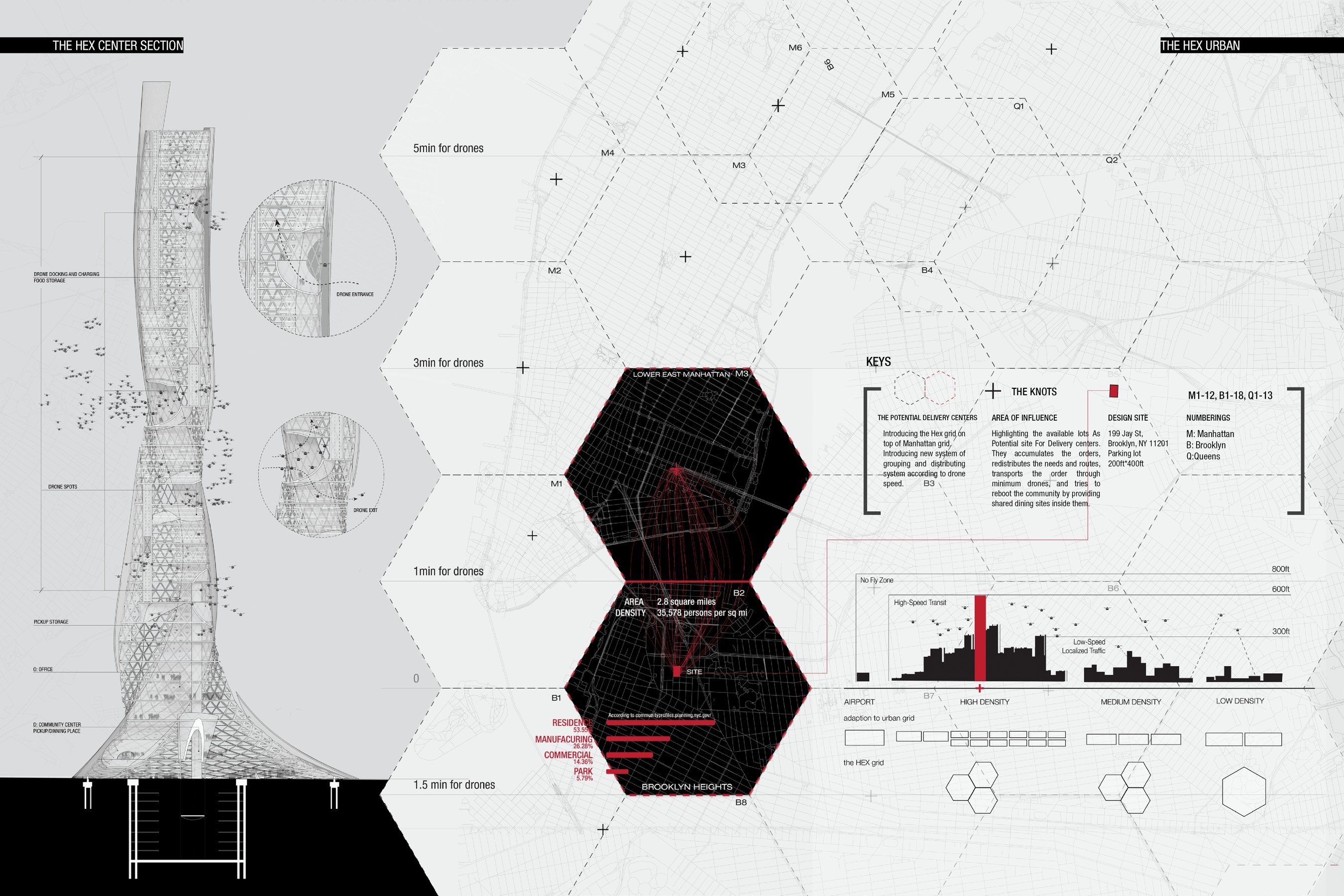

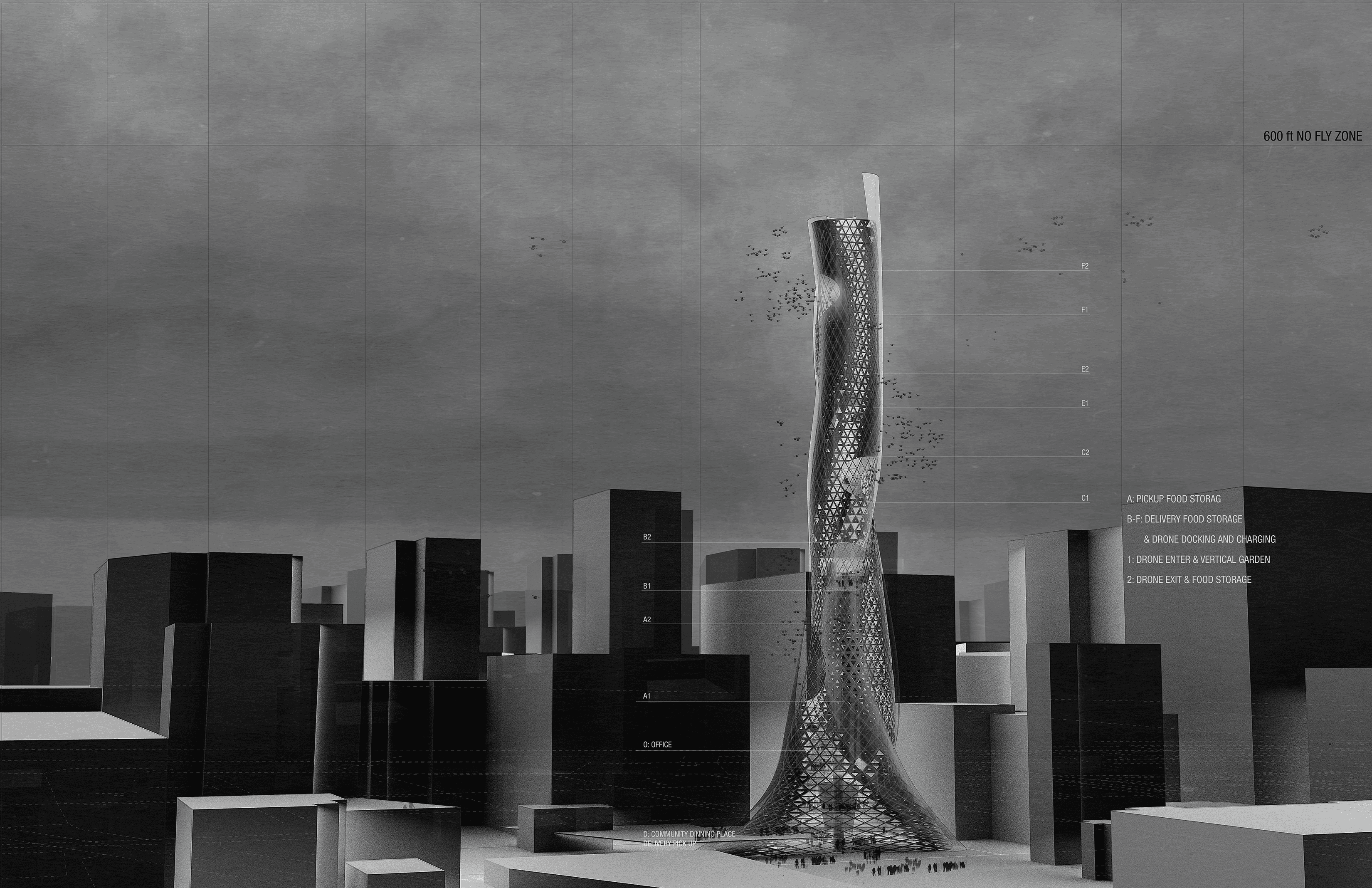

Each hub is a vertical drone port: kitchen below, landing decks above, and a public dining room on top. The network that feeds the city also gives every district a table to share.

Drones circling the tower, routes out to the knots of the grid, small drones leaving the Brooklyn site for the other tower cores.

Fewer trips, shorter flights, and a table to share at every hub.
